AMAKER 500 FOR FORD MUSTANG2.3 UPGRADE TURBO

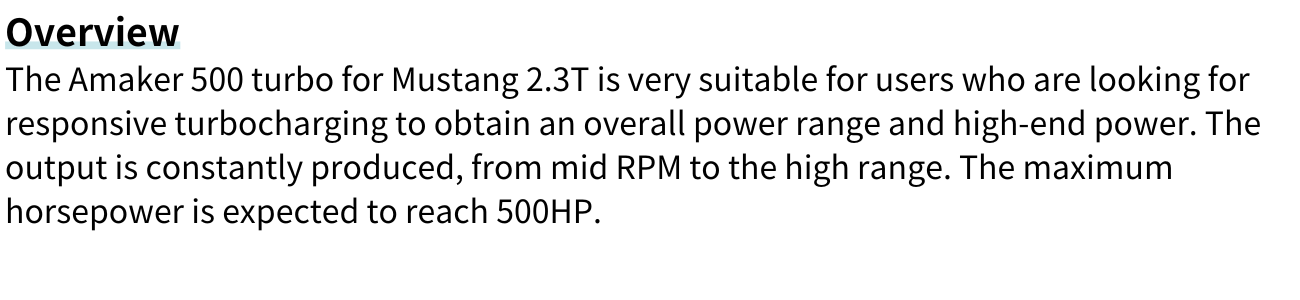

Overview

The Amaker 500 turbo for Mustang 2.3T is very suitable for users who are looking for responsive turbocharging to obtain an overall power range and high-end power.  The output is constantly produced, from mid RPM to the high range.  The maximum horsepower is expected to reach 500HP.

Features

• Direct Bolt-On ; can use the original car peripheral parts, easy and convenient to install.

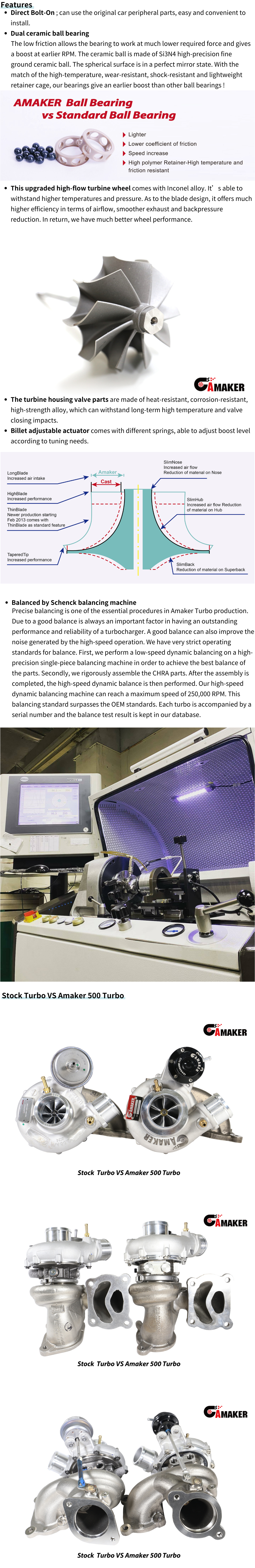

• Dual ceramic ball bearing
  The low friction allows the bearing to work at much lower required force and gives a boost at earlier RPM. The ceramic ball is made of Si3N4 high-precision fine ground ceramic ball. The spherical surface is in a perfect mirror state. With the match of the high-temperature, wear-resistant, shock-resistant and lightweight retainer cage, our bearings give an earlier boost than other ball bearings !



• This upgraded high-flow turbine wheel comes with Inconel alloy.  It’s able to withstand higher temperatures and pressure.  As to the blade design, it offers much higher efficiency in terms of airflow, smoother exhaust and backpressure reduction.  In return, we have much better wheel performance.

• The turbine housing valve parts are made of heat-resistant, corrosion-resistant, high-strength alloy, which can withstand long-term high temperature and valve closing impacts.


• Billet adjustable actuator comes with different springs, able to adjust boost level according to tuning needs.

• Balanced by Schenck balancing machine
  Precise balancing is one of the essential procedures in Amaker Turbo production. Due to a good balance is always an important factor in having an outstanding performance and reliability of a turbocharger. A good balance can also improve the noise generated by the high-speed operation. We have very strict operating standards for balance.  First, we perform a low-speed dynamic balancing on a high-precision single-piece balancing machine in order to achieve the best balance of the parts. Secondly, we rigorously assemble the CHRA parts. After the assembly is completed, the high-speed dynamic balance is then performed. Our high-speed dynamic balancing machine can reach a maximum speed of 250,000 RPM.  This balancing standard surpasses the OEM standards.  Each turbo is accompanied by a serial number and the balance test result is kept in our database.



---

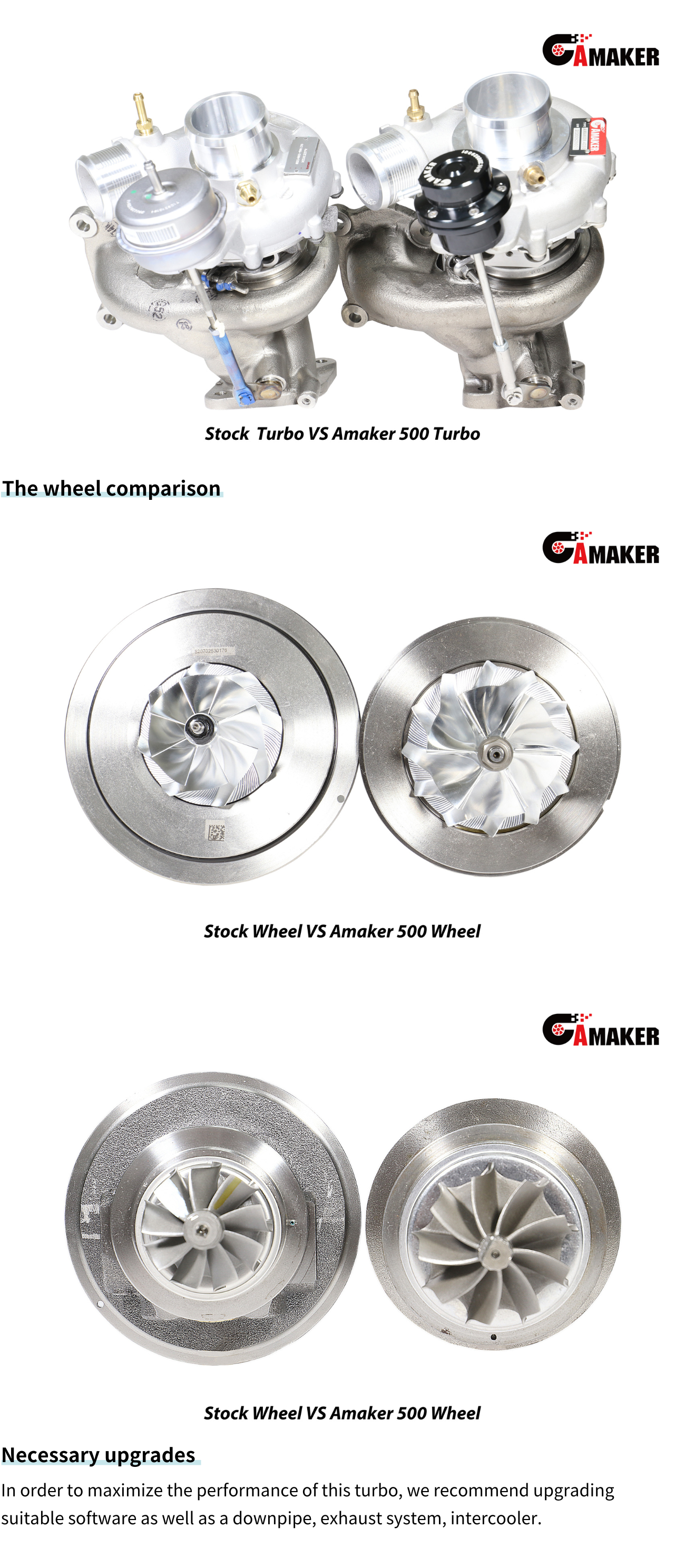

The wheel comparison

---
