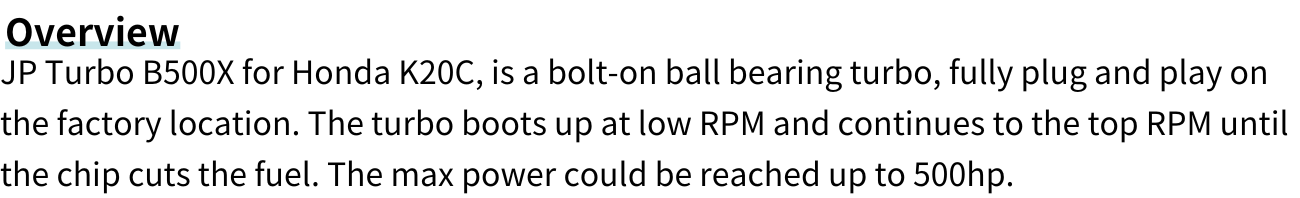

Overview
JP Turbo B500X for Honda K20C, is a bolt-on ball bearing turbo, fully plug and play on the factory location. The turbo boots up at low RPM and continues to the top RPM until the chip cuts the fuel. The max power could be reached up to 500hp.
Engine ：Honda K20C
Application for
- 2015~Civic Type-R FK2
- 2017~Civic Type-R FK8
- 2018~ACCORD CV2
- 2019~ACURA RDX
Modifications
- Upgrade ECU
- Hondata
- 100 Octane Pump Gas
- M1 Methanol Injection
- 245/40/18 Hoosier Drag Radials
- High Volume Intake System
- Turbocharger Inlet Pipe
- Intercooler Upgrade
- Motorsports Charge Pipe Upgrade
- Downpipe & Front Pipe Upgrade
- Stock Catback Exhaust System
- Stock Clutch
- Full Interior

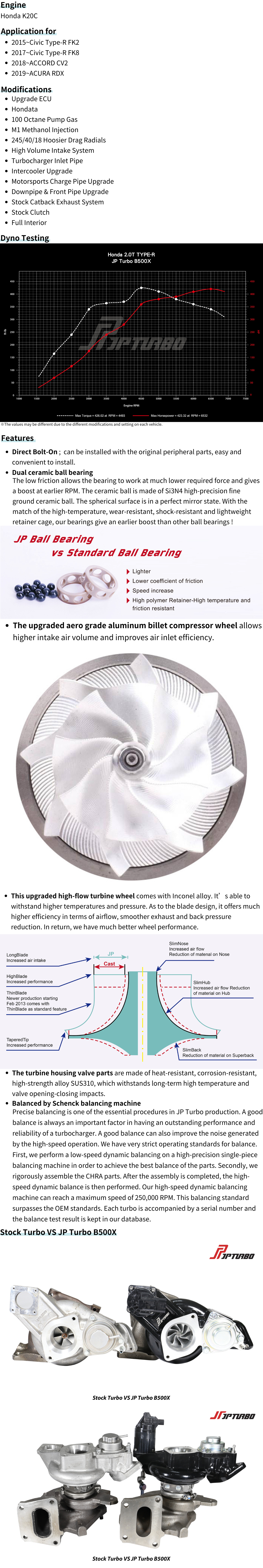

Dyno Testing
※The values may be different due to the different modifications and setting on each vehicle.
Features
- Direct Bolt-On ；can be installed with the original peripheral parts, easy and convenient to install.
-
Dual ceramic ball bearing
The low friction allows the bearing to work at much lower required force and gives a boost at earlier RPM. The ceramic ball is made of Si3N4 high-precision fine ground ceramic ball. The spherical surface is in a perfect mirror state. With the match of the high-temperature, wear-resistant, shock-resistant and lightweight retainer cage, our bearings give an earlier boost than other ball bearings !
- The upgraded aero grade aluminum billet compressor wheel allows higher intake air volume and improves air inlet efficiency.
- This upgraded high-flow turbine wheel comes with Inconel alloy. It’s able to withstand higher temperatures and pressure. As to the blade design, it offers much higher efficiency in terms of airflow, smoother exhaust and back pressure reduction. In return, we have much better wheel performance.
- The turbine housing valve parts are made of heat-resistant, corrosion-resistant, high-strength alloy SUS310, which withstands long-term high temperature and valve opening-closing impacts.
-
Balanced by Schenck balancing machine
Precise balancing is one of the essential procedures in JP Turbo production. A good balance is always an important factor in having an outstanding performance and reliability of a turbocharger. A good balance can also improve the noise generated by the high-speed operation. We have very strict operating standards for balance. First, we perform a low-speed dynamic balancing on a high-precision single-piece balancing machine in order to achieve the best balance of the parts. Secondly, we rigorously assemble the CHRA parts. After the assembly is completed, the high-speed dynamic balance is then performed. Our high-speed dynamic balancing machine can reach a maximum speed of 250,000 RPM. This balancing standard surpasses the OEM standards. Each turbo is accompanied by a serial number and the balance test result is kept in our database.
Stock Turbo VS JP Turbo B500X

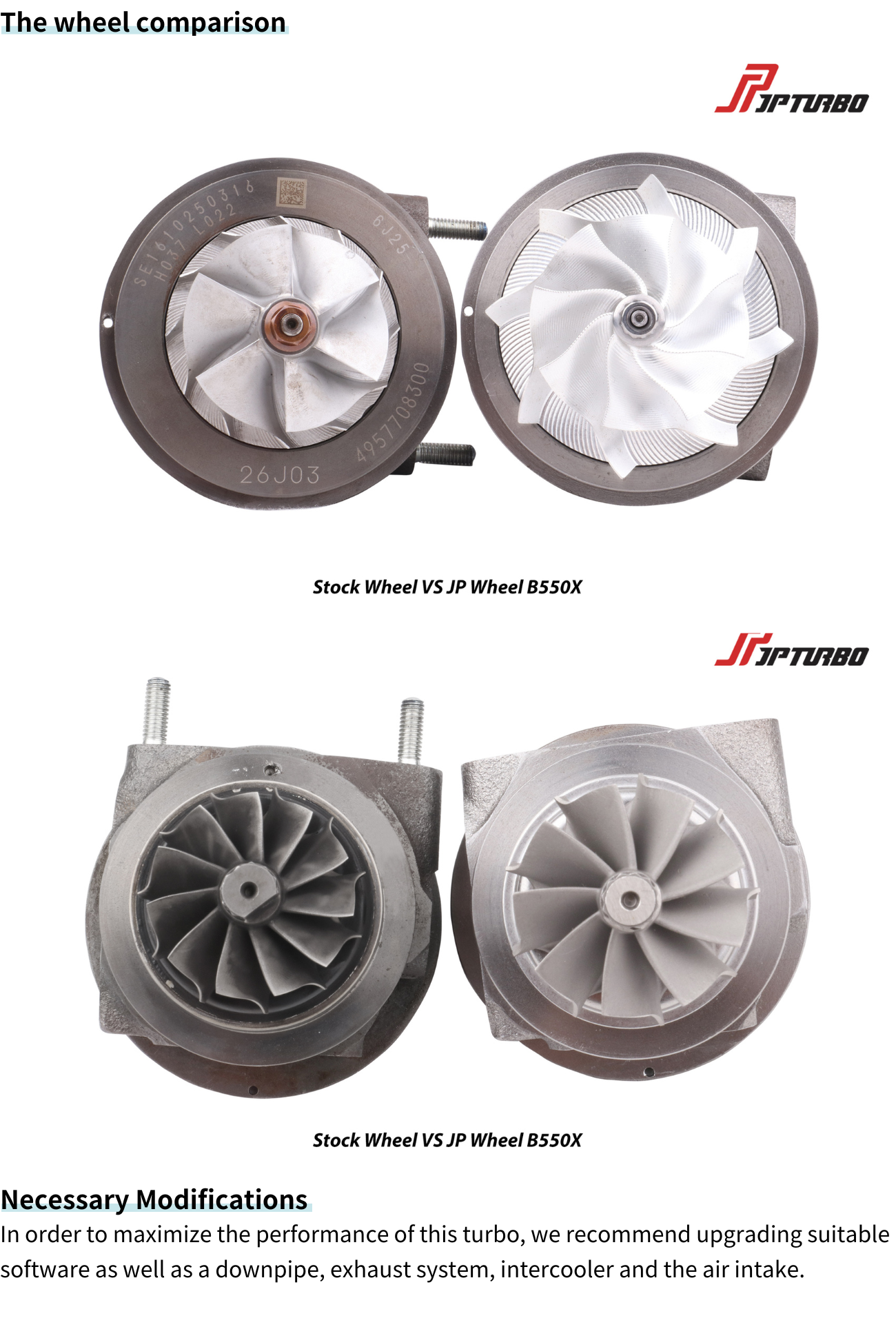

The wheel comparison
Necessary Modifications
In order to maximize the performance of this turbo, we recommend upgrading suitable software as well as a downpipe, exhaust system, intercooler and the air intake.
